Menşe yeri: | Çin Şenzen |
Marka adı: | TOPADKIOSK/OEM/Customized |
Sertifika: | CE/FCC/ROSH/IECEE |
Model numarası: | TPK-FT30010 |
Min sipariş miktarı: | 1 bilgisayar |
---|---|
Fiyat: | Negotiate |
Ambalaj bilgileri: | Önce kartonda paketlenir ve daha sonra dış ambalaj için tahta sandık ile güçlendirilir |
Teslim süresi: | Ödemenizi aldıktan sonra 10-15 gün |
Ödeme koşulları: | T/T, , MoneyGram |
Yetenek temini: | ayda 3000 adet |
İsim: | 30 inç 3300 lümen Holo arkadan projeksiyon filmi dokunmatik projektör kiosk | Giriş gerilimi: | AC100~240V 50 /60 HZ |
---|---|---|---|
Type: | IPS screen | Malzeme: | Metal Kasa + Sertleştirilmiş Cam |
Dokunmatik ekran: | kapasitif | Boyut: | 30 inç |
Renk: | beyaz siyah gümüş / özelleştirilmiş renk | kurulum yolu: | Zemin Standı |
İşlemci: | intel i3,i5,i7 | Veri deposu: | 4gb/8GB /16GB |
SSD: | 128gb /256gb /512gb | işletim sistemi: | Linux / windows 10 işletim sistemi |
Vurgulamak: | 3300 Lumen Touch Projector Kiosk,Holo Touch Projector Kiosk |

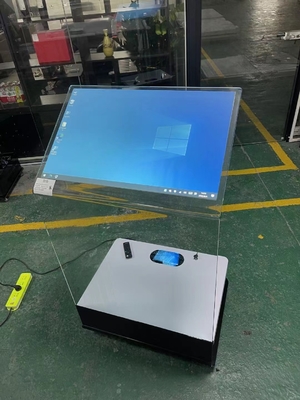

30inch 3300lumen Holo rear projection film touch projector kiosk
*By HoloTerminal can provide information and presentations at prominent place play. The most appealing design element adds to this problem in any environment.
*Unlike traditional terminals, the technology discreetly in the background.
*The focus is the design: A curved glass pane with lighting 30 inch Holo foil shows your message freely floating in space. content stored on a mirror to the Tempered glass, crystal clear and brilliant.
Features:
*Unique design
*Tempered glass to the main parts of the kiosk
*High quality 30inch touch foil film with transparent rear projection film
*Mini projector for image displaying
*Multi-touch operation
*Various application
Worldwide certificate approval, such as RoHS, CE, and FCC
Touch foil film (there is no gap between kiosk frame and TFT LCD monitor)
Items | Touch Foil Film Specifications |
Touch type | Projected capacitive touch Foil |
Typical feature | Touch through tempered glass |
Touch points | Multi 12 points |
Accuracy | ≤1mm |
Sensor |
TX28 RX48
|
Light transmittance | Over 95% |
Scanning speed | 8ms |
Output solution | 4096X4096 |
Safe distance | At least 3mm (between TFT LCD and touch foil) |
Life span | 7-9 years |
PC configurations (it can be changed per the demand of clients)
Items | PC Configurations |
CPU | Intel I3-4010U |
Memory | DDR3 4GB |
Hard disk | SATA 64GB |
Interfaces |
1*LVDS, 1*HDM(I), 1*VGA, 4*USB, 1*LAN, 2*COM, 1*WIFI
|
Operating System | Windows 7 (trial English version) |
Projector | |
Items | PC Configurations |
Name | Projector |
Projector brightness | 3300lumen |
Contrast | 15000:1 |
Kiosk
Items | Kiosk Specifications |
Material | 8-12mm Tempered glass |
Voltage input | AC 110V – 240V |
Power plug | America standard, Europe standard |
Work temperature | 0°C to 40°C |
Storage temperature | -20°C to 60°C |
Humidity | 20%-80% |
FAQ:
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs and free of charge.
Q: What kind of inspection you can provide?
A: Topadkiosk has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Topadkiosk provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Topadkiosk will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Topadkiosk will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Topadkiosk will provide maintenance service and technical support (Hardware and other possible charges, Topadkiosk will not bear the responsibility).
Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here. It's our pleasure to provide best solution for you.
Q: What's the lead time?
A: Mass order: 7-10 days depending on order quantity.
Sample: 1 day when there is stock,7-10 days for custom design.
Q: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
Q: Do you provide OEM service?
A: Of course. We have a professional team which is having considerable experience in colour decoration cases and manufacturing. Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
